Heavy Duty Spiderbeam 5-Band Yagi Antenna – Rugged, High-Performance HF Beam
Designed for permanent installations, the Heavy Duty Spiderbeam 5-Band Yagi delivers exceptional performance across the 20m, 17m, 15m, 12m, and 10m HF bands. Built with reinforced aluminum and fiberglass components, this antenna withstands severe weather while maintaining superb signal gain and reliability.
Key Specs:
-
Bands: 20m / 17m / 15m / 12m / 10m
-
Elements: 3 / 2 / 3 / 2 / 4
-
Forward Gain (10m height): 11.7–12.6 dBi
-
Front-to-Back Ratio: 10–25 dB
-
SWR: Typically <1.5–2
-
Max Power: 2000W PEP (balun included)
-
Impedance: 50 Ohms, single feedline
-
Boom Length: 10m (33 ft)
-
Turning Radius: 5m (16 ft)
-
Weight: 11.5kg (25 lbs)
-
Transport Size: 120x27x18cm (47x11x7 inch)
Built for Durability & Performance
This Heavy Duty Spiderbeam features thicker aluminum and fiberglass sections for extra ruggedness, designed to endure New Zealand’s toughest weather conditions year after year. All parts are corrosion-resistant and UV-protected, ensuring long-term reliability for your permanent HF setup.
Proven Design for Serious Operators
Five monoband yagis are interlaced on a single boom, producing a highly efficient antenna with strong forward gain and excellent front-to-back ratios. At only 11.5 kg, it’s lightweight for a permanent beam in this class, making installation and maintenance easier.
A Rewarding DIY Project

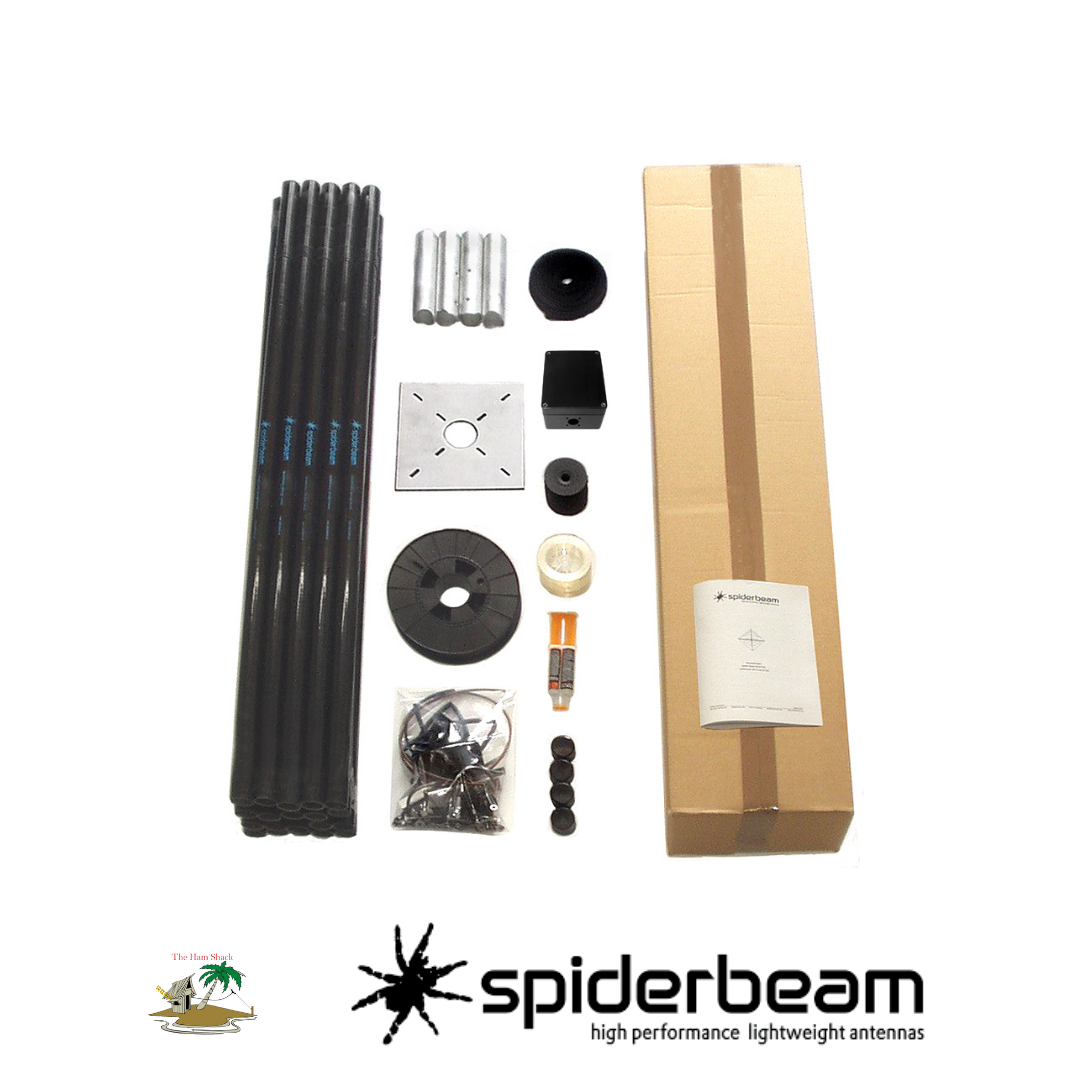

This kit includes all necessary components and a detailed construction guide. Assemble your own high-performance HF antenna and experience the satisfaction of working pile-ups with gear you built yourself.
Join Over 1000 Happy Spiderbeam Users Worldwide
As the official Spiderbeam distributor in New Zealand, we offer expert advice and support. For tips, installation guides, and modifications, visit the tutorial site by experienced HAM Rick DJ0IP.
Get your Heavy Duty Spiderbeam Yagi today — build your best HF setup and enjoy powerful, reliable signals for years to come!
