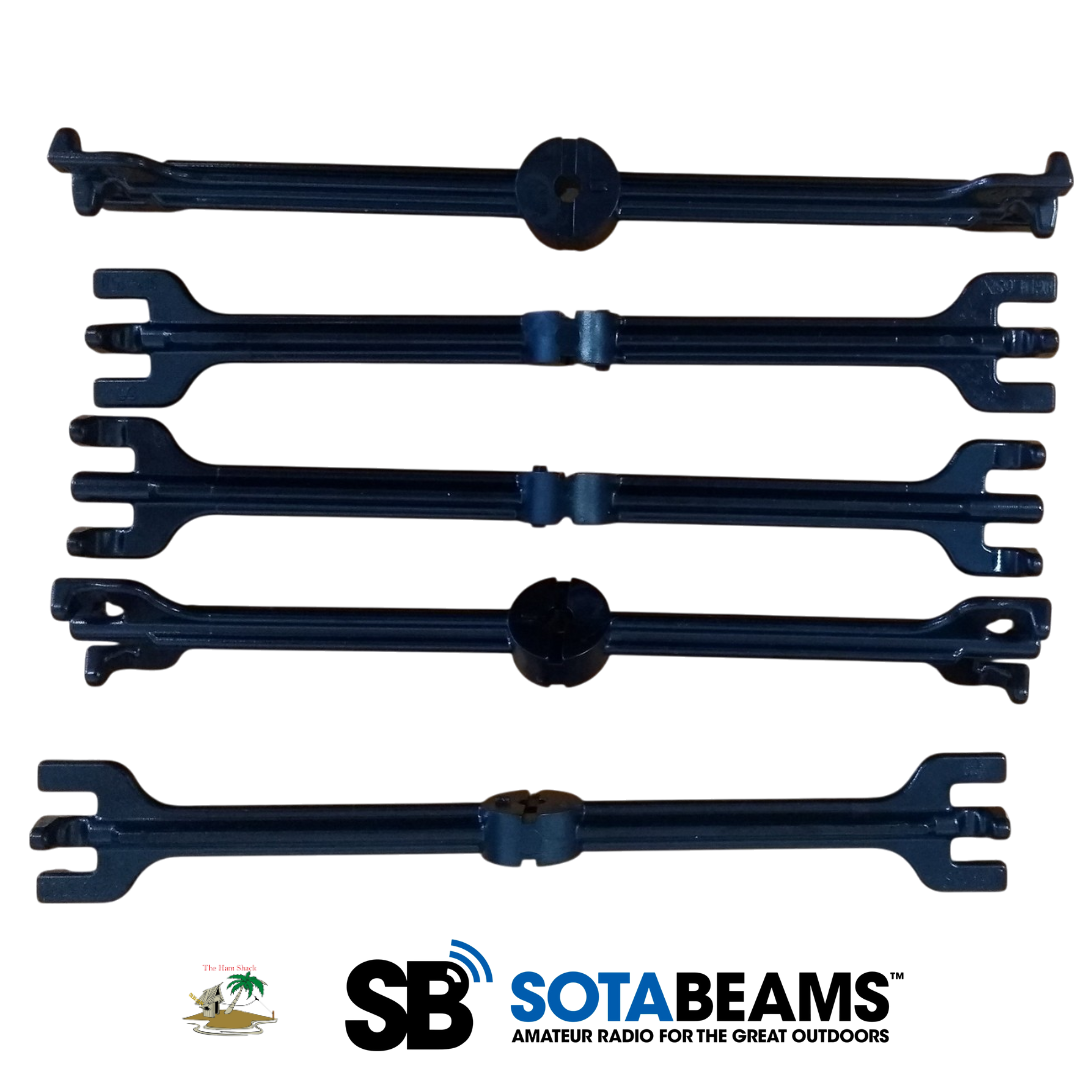

SOTA BEAMS Open Wire Line Spacers 150mm
Price is per 5 insulators
Video: Open wire spacers from SOTABEAMS
These heavy-duty spreader insulators are light and strong. They are a real alternative to the old ceramic types but using modern materials! They are suitable for permanent or temporary installations. Making low-loss ladder line is so easy!
SOTA BEAMS Open Wire Line Spacers 150mm Features
- Made from a specially selected mix of ABS and PC to give great strength coupled with good UV resistance and a wide temperature range (-50C to +90C).
- Wire just clips in.
- Spaced for approx 600 Ohm Line
- Central fixing hole allows attachment to wall stand-off.
- Also great for folded dipoles.
- Unlike heavy ceramic insulators - which tend to slip with time on vertical ladder lines, these spacers are light-weight at just 7.4g (0.2 oz.).
- They are suitable for wire 2mm-3.3mm diameter.
- Line spacing 140mm (5.51 inches). Spacer length 150mm (5.9 inches).
- Recommended distance between spreaders 100cm (39.5 inches).
Ideal for our heavy duty antenna wire.
