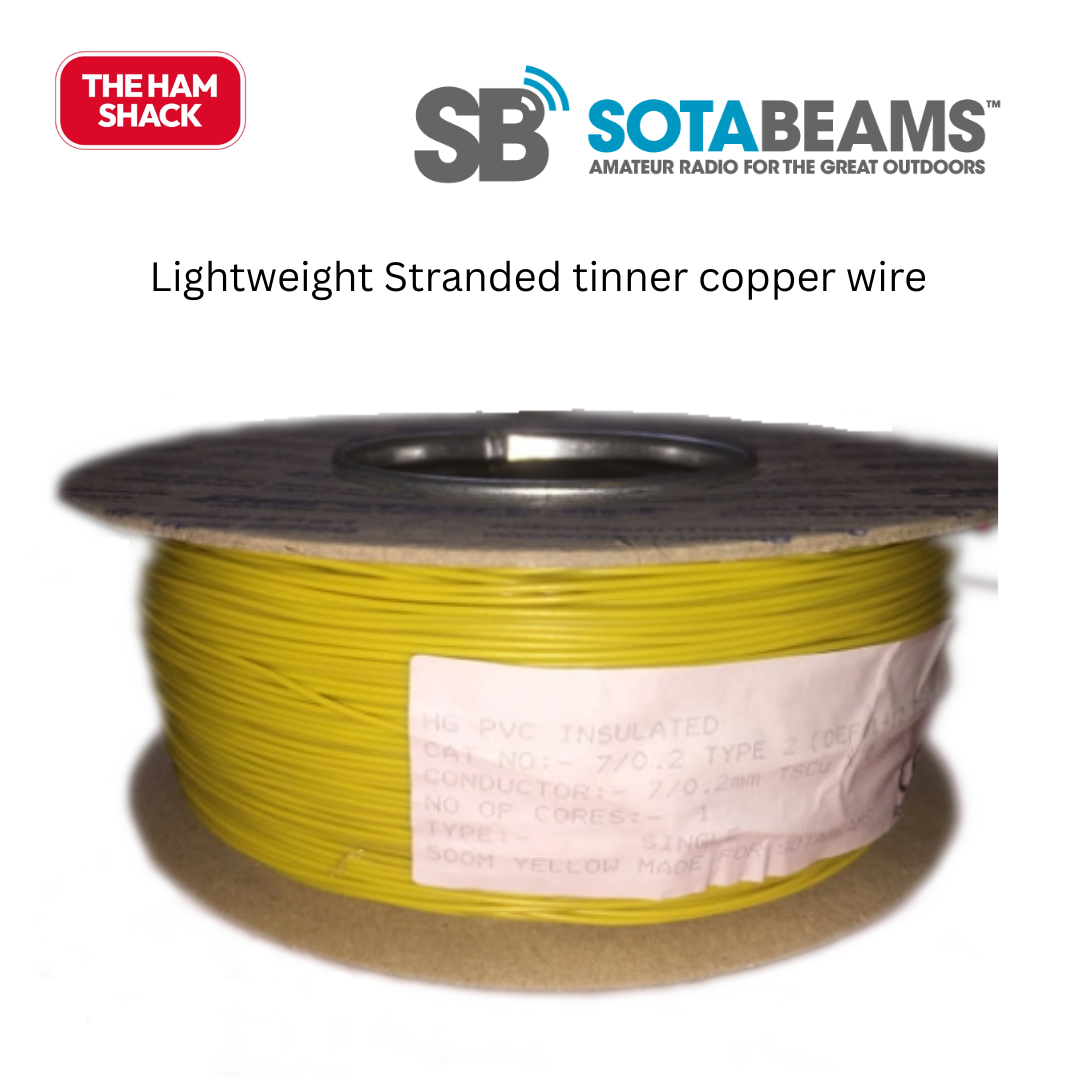

Lightweight Antenna Wire (500m)
A bargain price for our lightweight antenna wire (Yellow Hiz Viz ). This thin wire has a stranded tinned copper conductor and a PVC jacket. It is ideal for making lightweight antennas or for use as radials. It is the same type of wire that we use for our own range of lightweight antennas.
A nice ductile wire for easy handling and winding.
Suitable for power levels up to 150 Watts at 50 Ohms.
Available in
- yellow for high visibility applications, and
These wires are made for SOTABEAMS to our own specification.
Specifications
- tinned annealed copper conductor,
- 0.22mm² total conductor CSA (cross sectional area) - approx. 24 AWG
- 7/0.2mm conductor stranding,
- 1.2mm cable diameter,
- Voltage Rating: 1000V rms,
- PVC insulation,
- Insulation colours: yellow or green,
- Current Rating: 2.0A at 25 °C,
- Resistance: 88 milliOhms/m
- Velocity factor 0.97.
