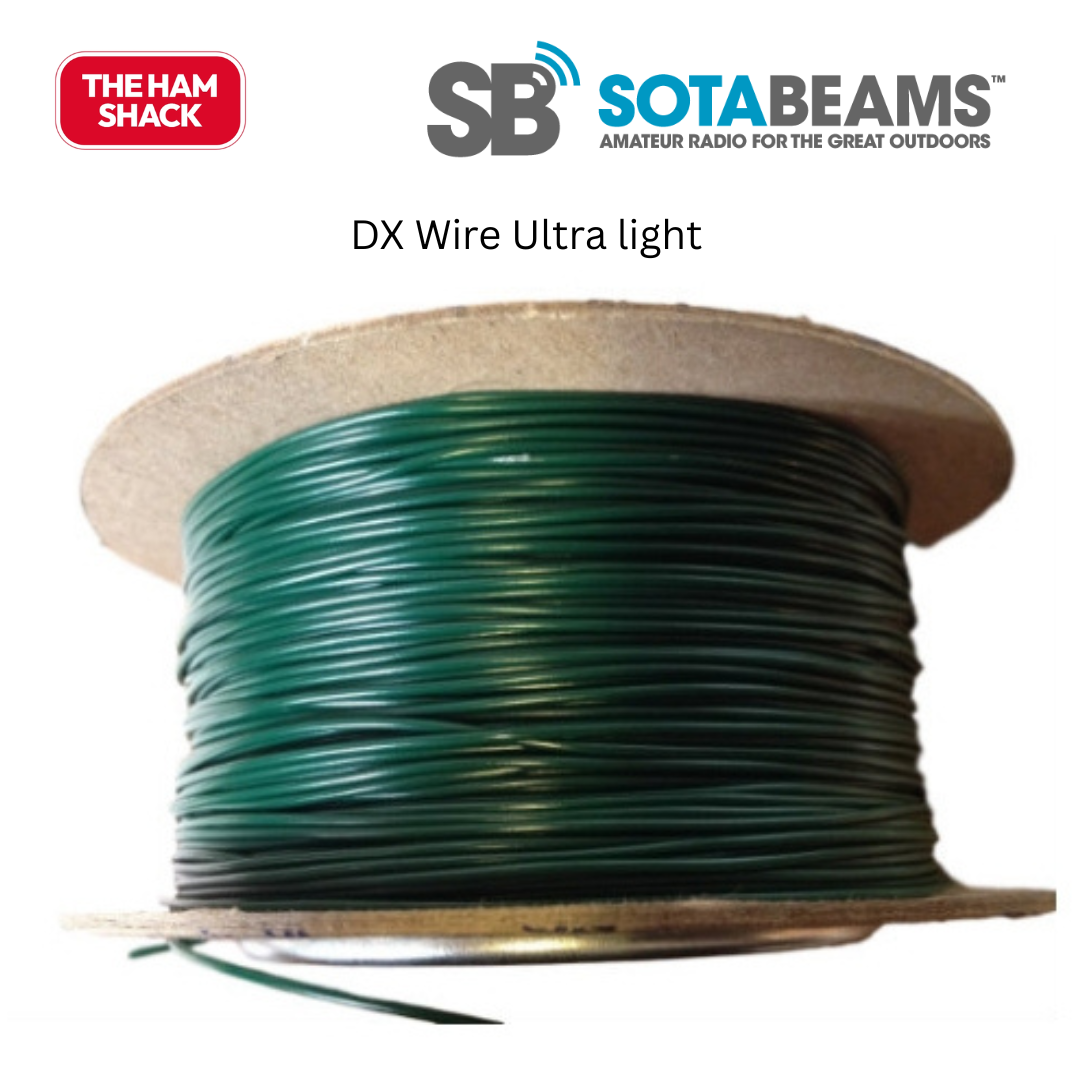

Antenna Wire - lightweight

100m of wire, the same type as we use in our Band Hopper antennas. A nice ductile wire for easy handling and winding.

Suitable for power levels up to 150 Watts at 50 Ohms.

These wires are made for SOTABEAMS to our own specification .

Specifications

• DEF 61-12 Pt 6
• tinned annealed copper conductor,
• 0.22mm² total conductor CSA (cross sectional area) - approx. 24 AWG
• 7/0.2mm conductor stranding
• Conductor diameter approx 0.55mm
• Cable outer diameter 1.2mm
• Voltage Rating: 1000V rms
• PVC insulation
• Insulation colours: yellow or green or brown
• Current Rating: 2.0A at 25 °C

• Resistance: 88 milliOhms/m
• Velocity factor 0.97
• Weighs approximately 3.3 grams per metre.
