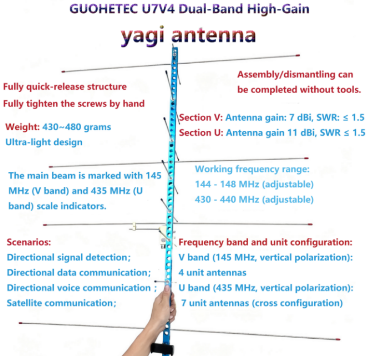

GUOHETEC U7V4 dual-band high-gain Yagi antenna for satellite communication, upper and middle relay, U band and V band, portable handheld Directional Yagi antenna.
Weight: Only 480 grams
(Without the phone stand, which weighs 430 grams, this is an ultra-light design)
Section V: Antenna gain: 7 dBi, SWR: ≤ 1.5
Section U: Antenna gain 11 dBi, SWR ≤ 1.5
Scenarios:
Directional signal detection;
Directional data communication;
Directional voice communication ;
Satellite communication;
Operating frequency range:
144 - 148 MHz (adjustable)
430 - 440 MHz (adjustable)
Frequency band and unit configuration:
V band (145 MHz, vertical polarization) 4 elements
U band (435 MHz, vertical polarization): 7 elements
The fully quick-release structure features fully hand-tightened screws, assembly/dismantling without the need for tools;
Price include zip up bag.
