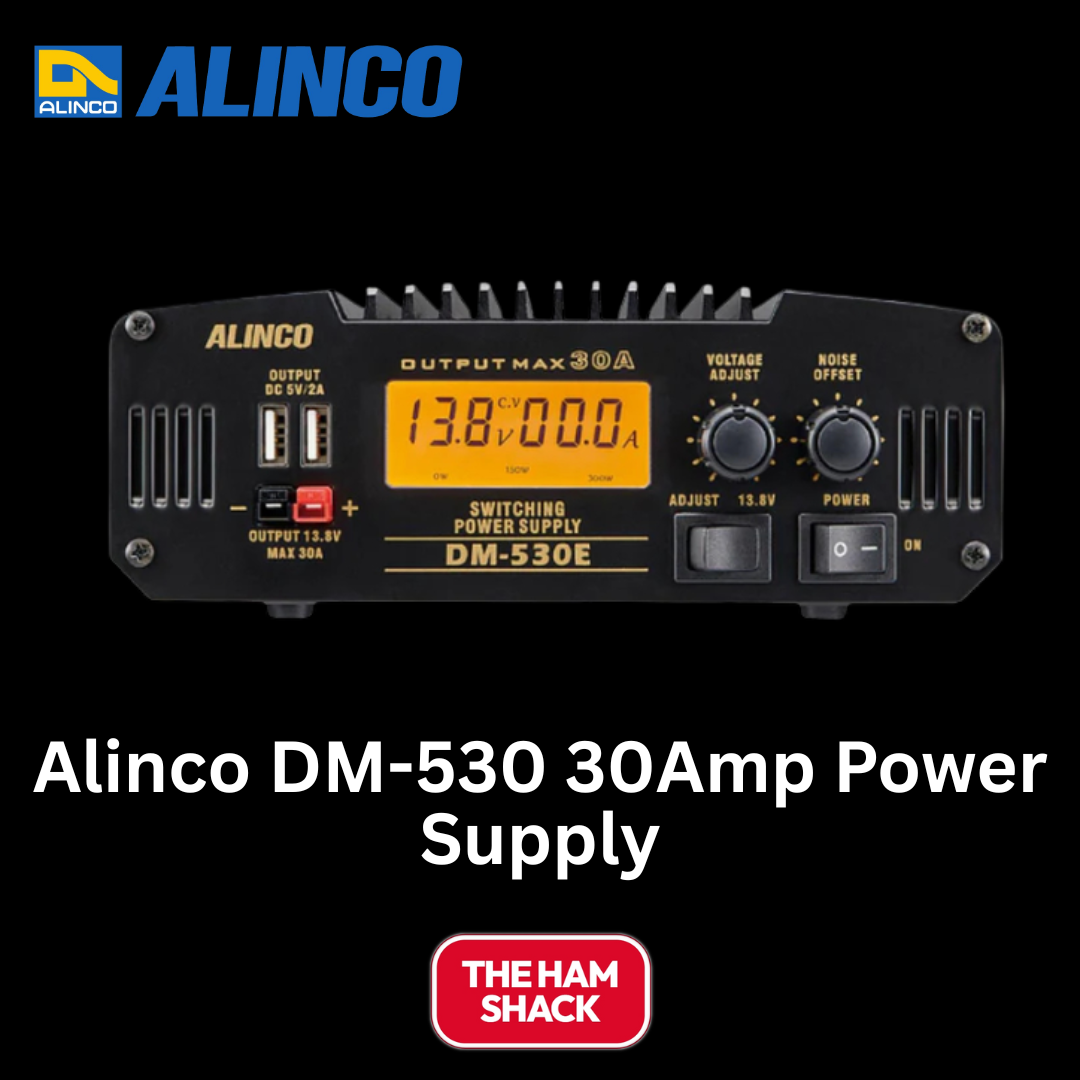

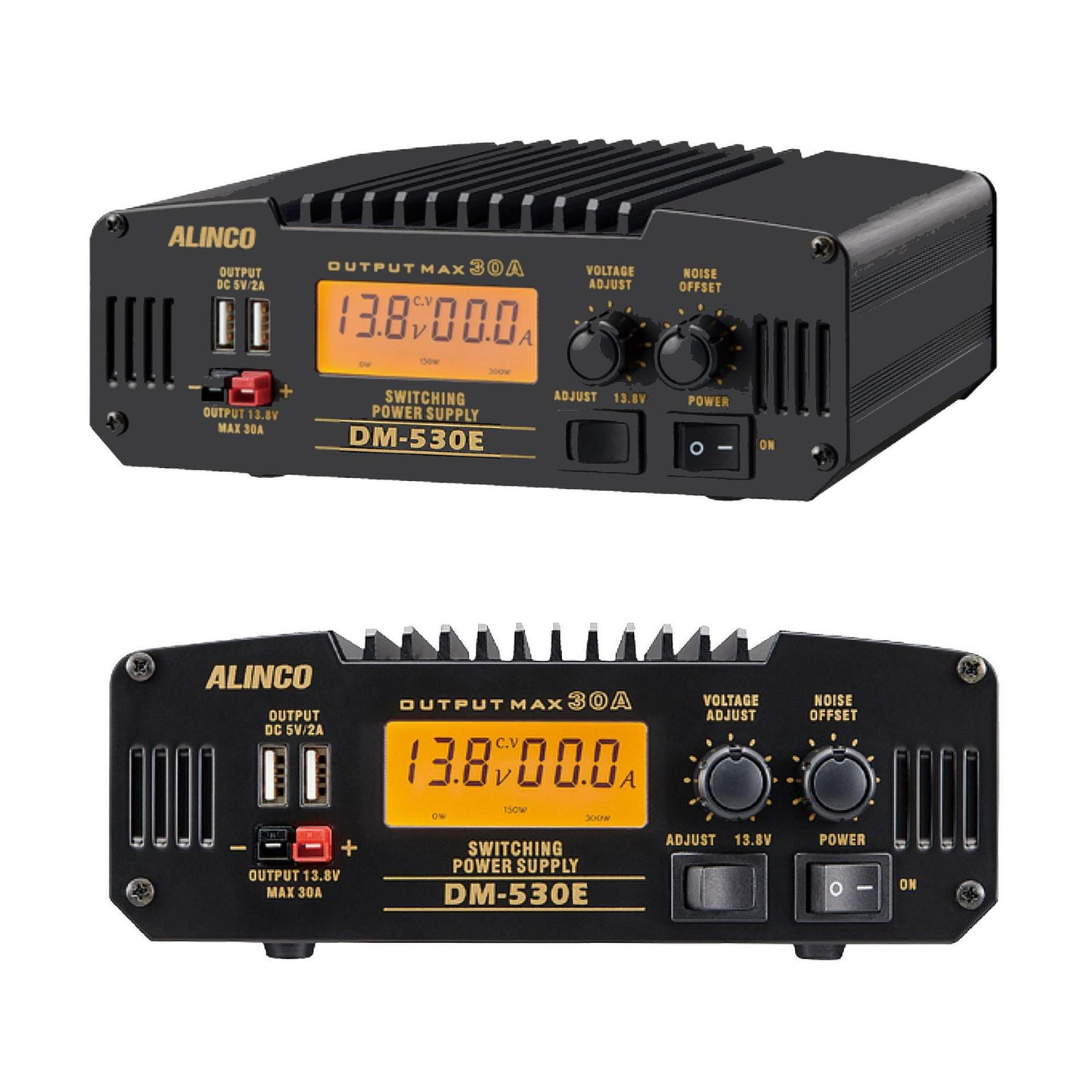

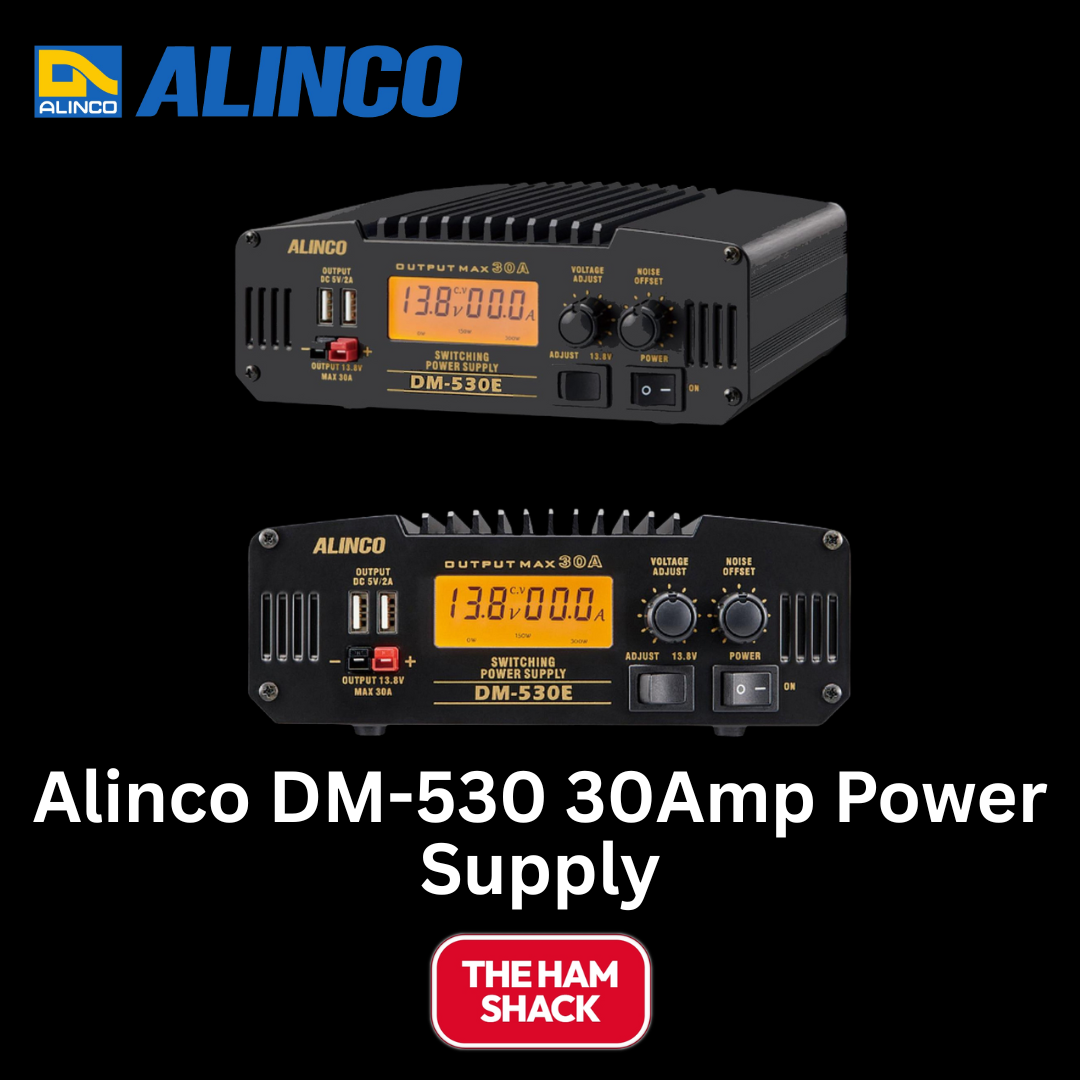

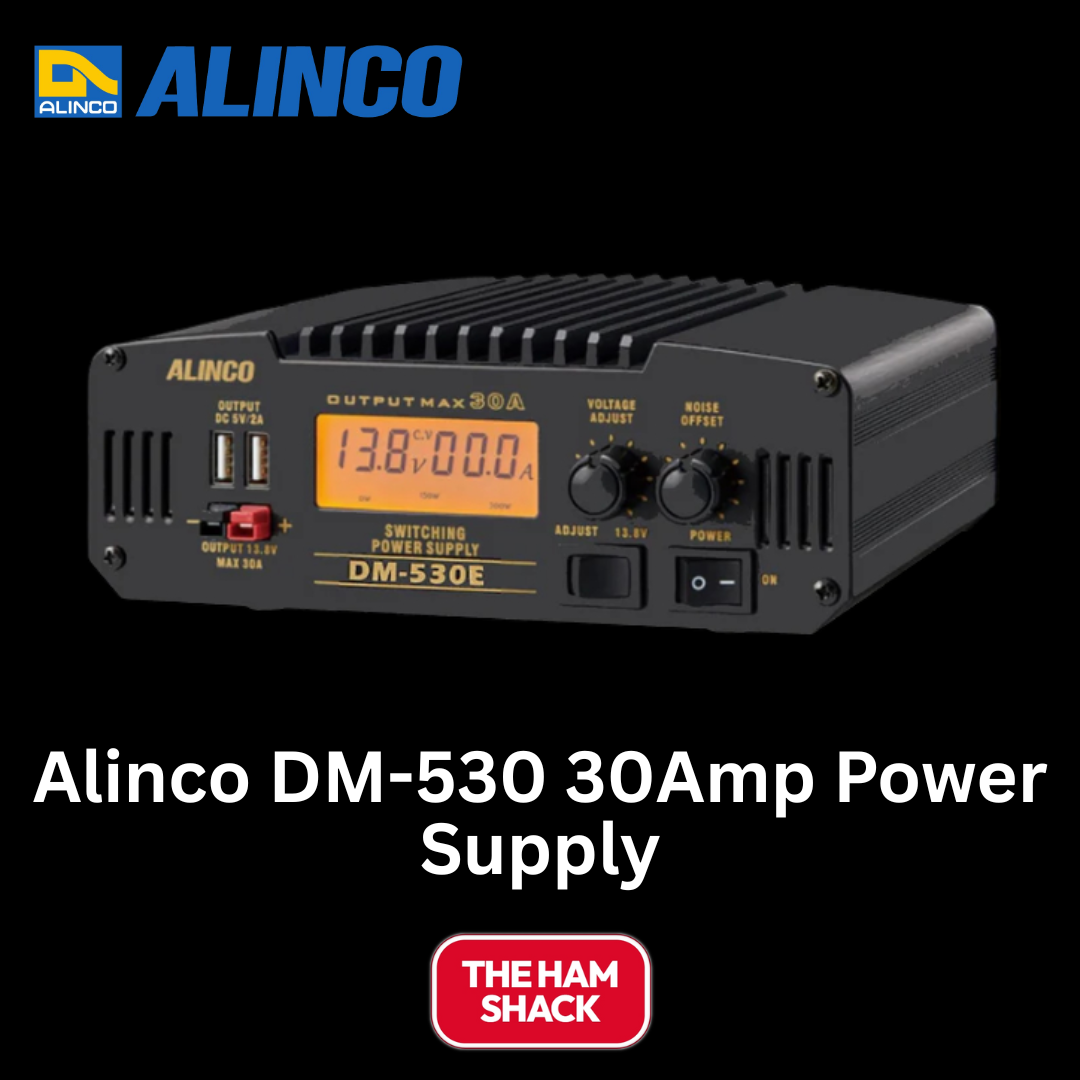

Alinco DM-530T Digital Power Supplies

Alinco DM-530T Digital Power Supplies pack a lot of features into an affordable communications-grade package. The output voltage of the DM-530T switching power supply is adjustable from 5-15VDC, or 13.8VDC fixed and can deliver up to 30A max current. Built-in triple circuit protections exist for short-circuit, over temperature and current limiting. The Noise Offset Circuit helps to reject switching-noise on the receive frequency by moving unwanted switching noise to another frequency. The large, highly visible and accurate digital Volt/Amp meter allows effortless real-time monitoring of output current.

Additional Features and Specifications:

• Auxiliary Output Terminals: A pair of 30A (Max) Anderson Power Pole Auxiliary Output Quick Terminals located on the front panel

• Front Panel USB Ports: 5VDC/2A provide versatile quick connections.

• Large Binding Posts: The large main output terminals on the back provide efficient power transfer to your equipment

• Forced Air Cooling: Designed for reliability, a durable cooling fan keeps the DM-530T running continuously, even under heavy loads

• Input Voltage: 230VAC

• Output Voltage: 5-15VDC, USB 5VDC

• Output Current: 30A (max)

• Output Voltage Regulation: Less than 3%

• Ripple Voltage: Less than 50mVp-p rated load

• Protection Circuits: Automatic current shutdown over 30A, Temperature Protection circuit

• Fuse: 8A
