Boost Performance with Our HF Antenna Tuner
Ensure maximum power transfer and protect your transceiver with our high-quality HF antenna tuner. Designed to match your antenna system to a 50-ohm load, it improves signal strength, reduces SWR, and gives you the flexibility to use a wide range of antennas—even non-resonant ones. Perfect for reliable, high-efficiency HF communication.
About this Antenna Tuner Unit
This ATU can generally tune an SWR of 3:1 or better and requires 10 watts to 30 watts to tune.
The maximum power used during tuning should not exceed 30 watts during tuning. (it can be set to 100 watts after tuning, and work at this power, otherwise the components and board can be burnt – this does not fall under the warranty)
The tuner will tune from 1.8 Mhz to 54 Mhz
Antenna Tuner Unit ATU100 Specifications:

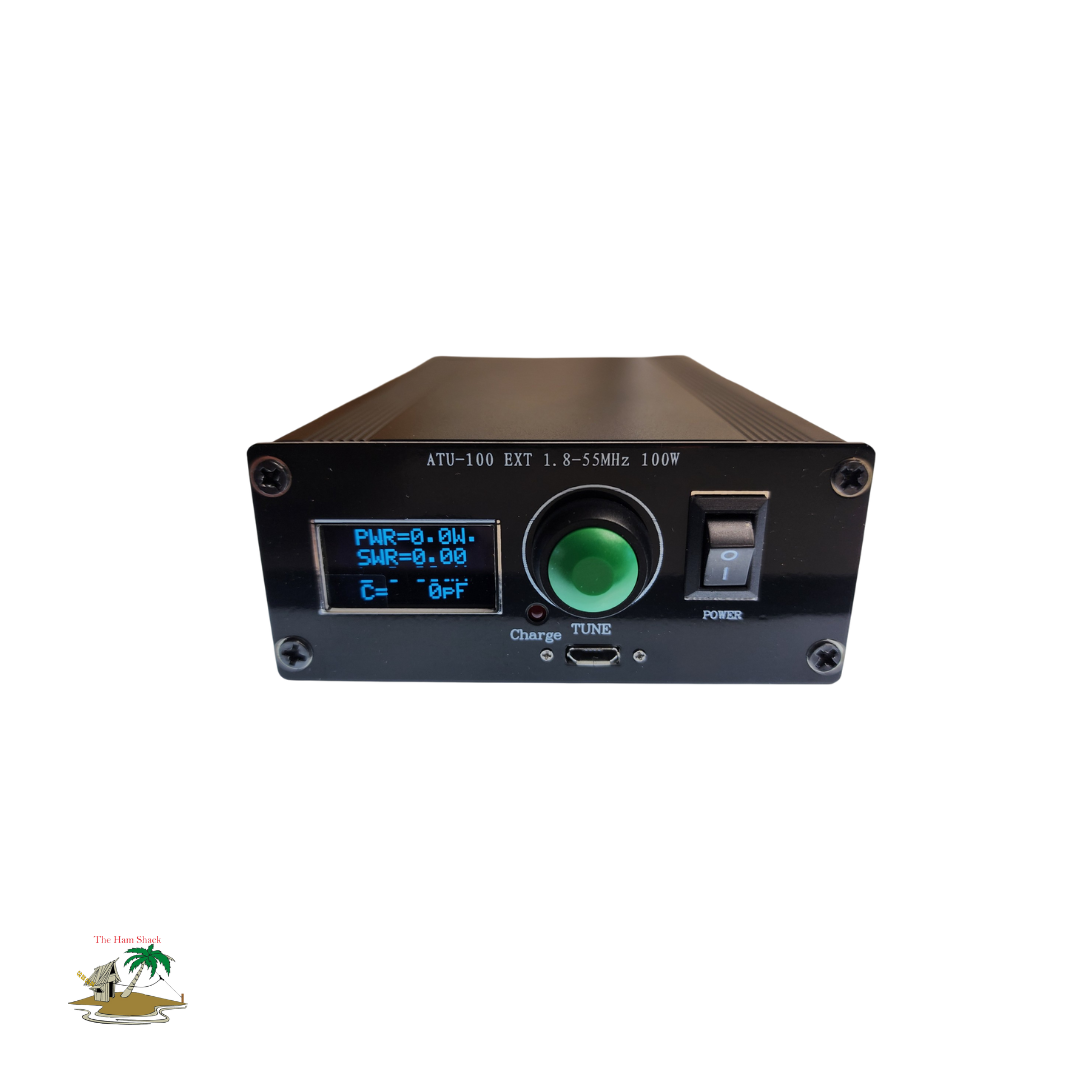

Name: ATU100 Tuner
Material: aluminum alloy
Color: black
Display: 0.91inch OLED display
Charge: USB Type-C cable
Battery: 1 * lithium battery, 3.7V, 1800mAh (included)
Voltage: typical + 12 V (DC10-15V, 13.8V)
Working frequency: 1.8-55MHz
Maximum current consumption: 400mA
Maximum working power: 100W
Maximum possible measurement power: 150W
Minimum power required to starts tuning: 5W
Minimum possible measurement power: 0.1W
Measurement step for power up to 10W: 0.1W
Measurement step with power higher than 10W: 1W
Power measurement accuracy: 10%
Maximum installation inductance: 8.53uH
Minimum installation inductance step length: 0.05uH
Maximum installation capacitance: 1869pF
Minimum installation capacitance step length: 10pF
Number of panel buttons: 3 (ON/OFF, AUTO, TUNE)
Item size: 160 * 90 * 40mm / 6.30 * 3.54 * 1.57in
Item weight: 413g / 0.91lb
Package size: 175 * 122 * 55mm / 6.89 * 4.80 * 2.17in
Package weight: 465g / 1.03lb
Packing List:

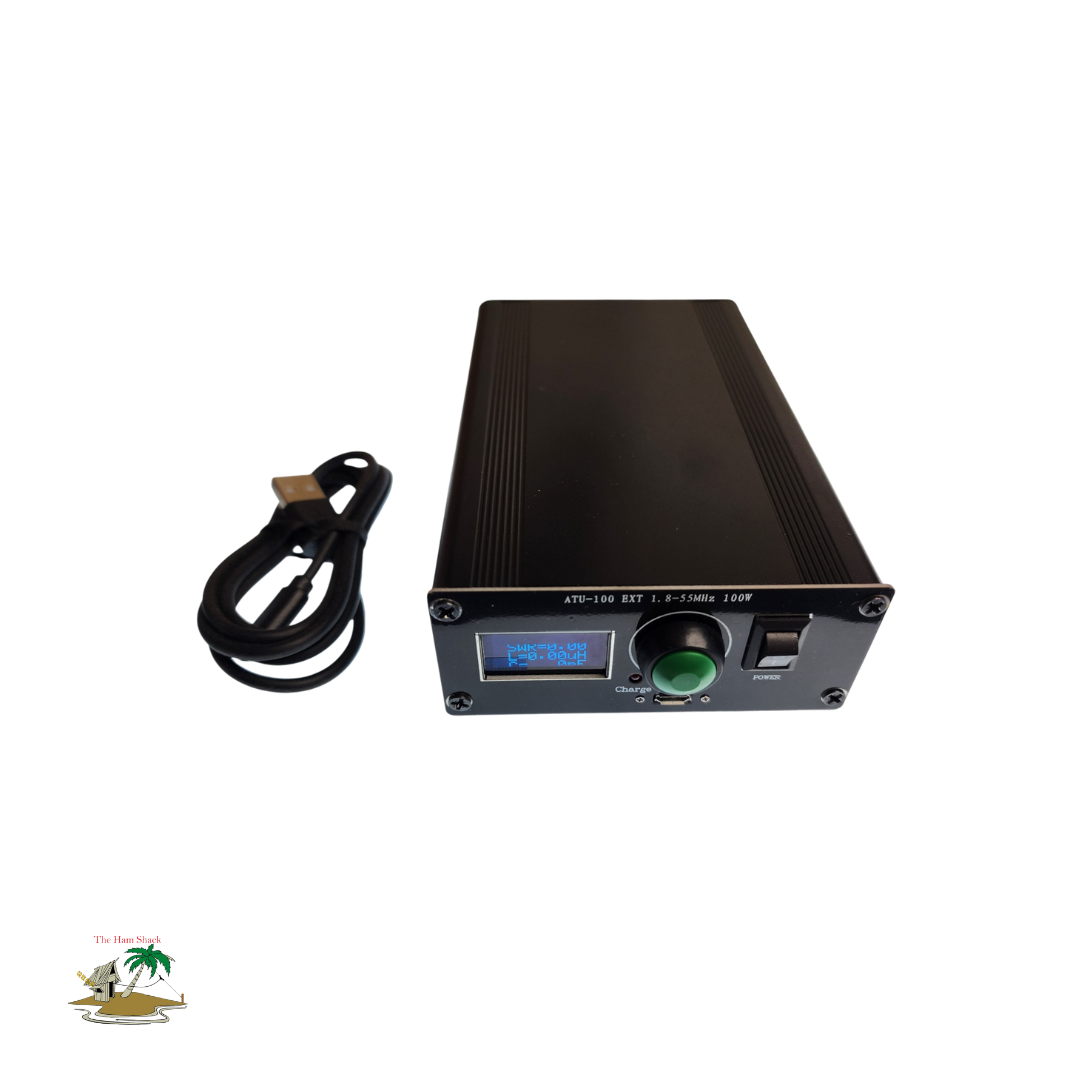

1 * ATU100 Tuner
1 * Type-C Cable
