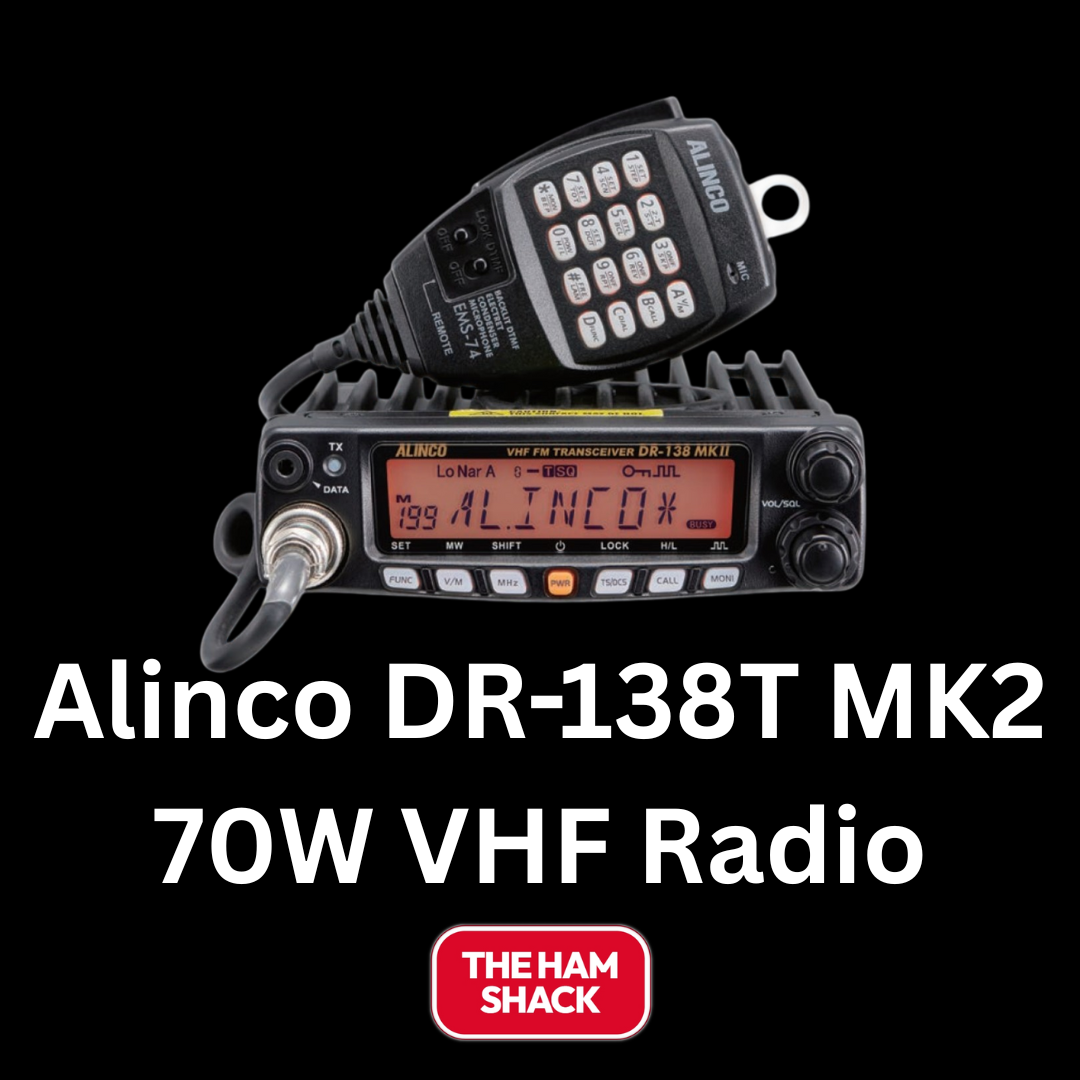

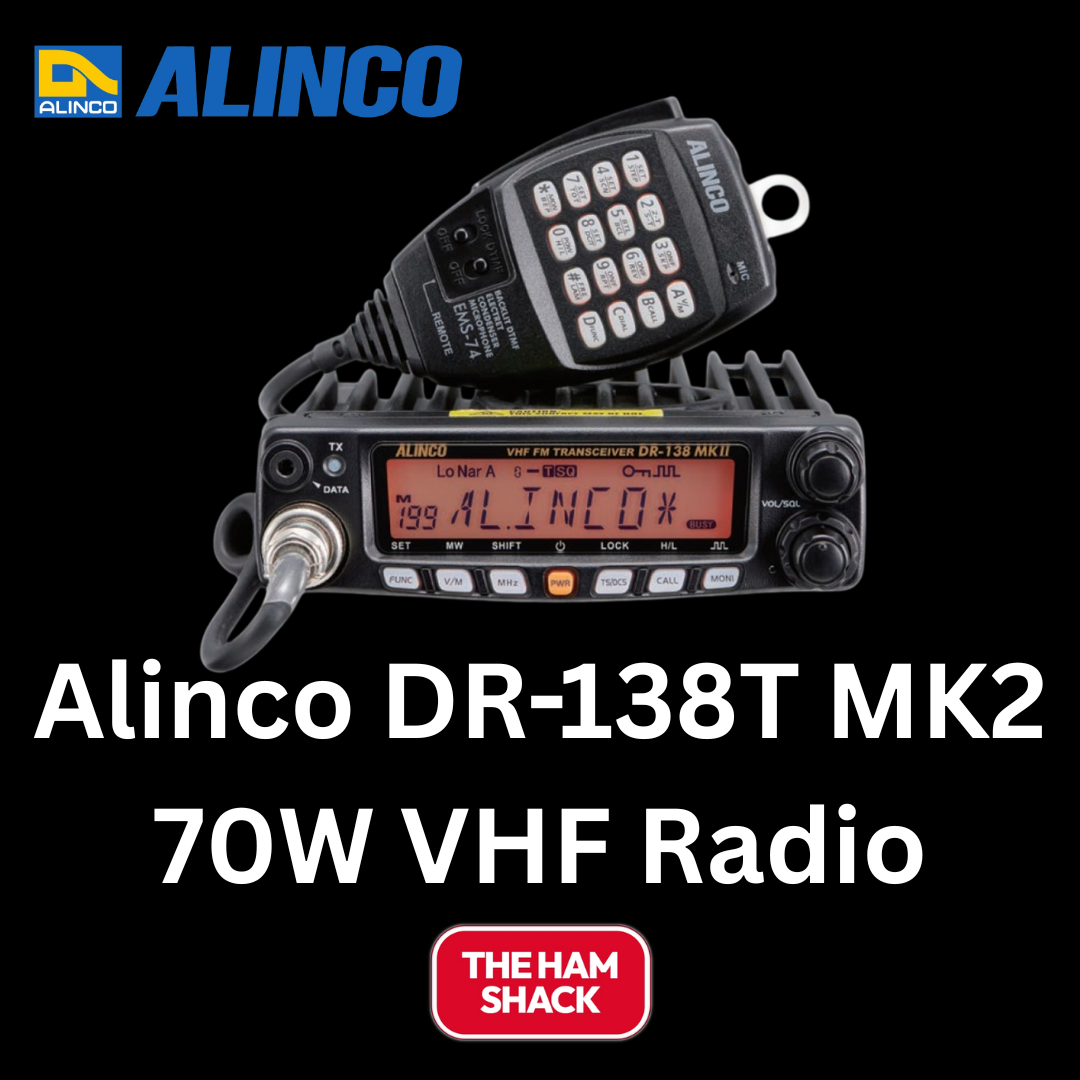

Alinco DR-138TMkII VHF Mobile Transceiver – 70W High Power with Airband Receive
The Alinco DR-138MkII is a powerful and feature-rich VHF mobile transceiver, designed for serious amateur radio operators and professional users alike. With selectable output power up to 70W, robust construction, and enhanced audio clarity, it’s the ideal choice for base or vehicle installation.
Now available from The Ham Shack NZ – your trusted local source for quality radio gear.
Key Features of the Alinco DR-138TMkII VHF Mobile Transceiver
-
High Power Output: Selectable 70W / 25W / 10W transmission power for flexible operation
-
Wideband Receive: RX coverage from 136–174MHz, plus built-in Airband AM (108–136MHz) and FM Broadcast (76–108MHz) receive (TMkII/EMkII only)
-
Noise Reduction Function: Reduces background noise during TX for clearer communication
-
Voice Compander: Enhances audio clarity on both receive and transmit
-
200 Memory Channels: PC-programmable with alphanumeric channel tags
-
Selective Calling: Supports 2-Tone, 5-Tone, 50 CTCSS, 114 DCS, DTMF/ANI, 4 tone-burst tones
-
Security Functions: Radio stun/kill/revive for secure communications
-
Backlit LCD & Mic: Bright, easy-to-read display with multifunction, backlit keypad microphone
-
Scan Modes & Key Lock: Includes multiple scan options, wide/narrow mode selection, keypad lock, and more
-
USB Programmable: Free PC software available for easy programming
Alinco DR-138TMkII VHF Mobile Transceiver Specifications:
-
TX Frequency Range:
-
TMkII: 144.000–147.9975 MHz
-
-
RX Frequency Range: 136.000–173.9975 MHz
-
Airband AM: 108–136 MHz
-
FM Broadcast: 76–108 MHz
-
-
Channel Steps: 2.5 to 50 kHz selectable
-
Channel Spacing: 25kHz (Wide), 20kHz (Middle), 12.5kHz (Narrow)
-
Power Supply: 13.8V DC ±15%
-
Current Drain: Approx. 12A TX (high) / 0.6A RX max
-
Audio Output: >2W @ 10% distortion
-
Size & Weight: 145(W) x 47(H) x 190(D) mm / approx. 1.2 kg
-
Modulation: 16KΦF3E (FM), 11KΦF3E (NFM)
-
Sensitivity: ≤0.25μV (wide), ≤0.35μV (narrow)
-
Frequency Stability: ±2.5ppm
-
Audio Distortion: ≤5%
What's in the Box:
-

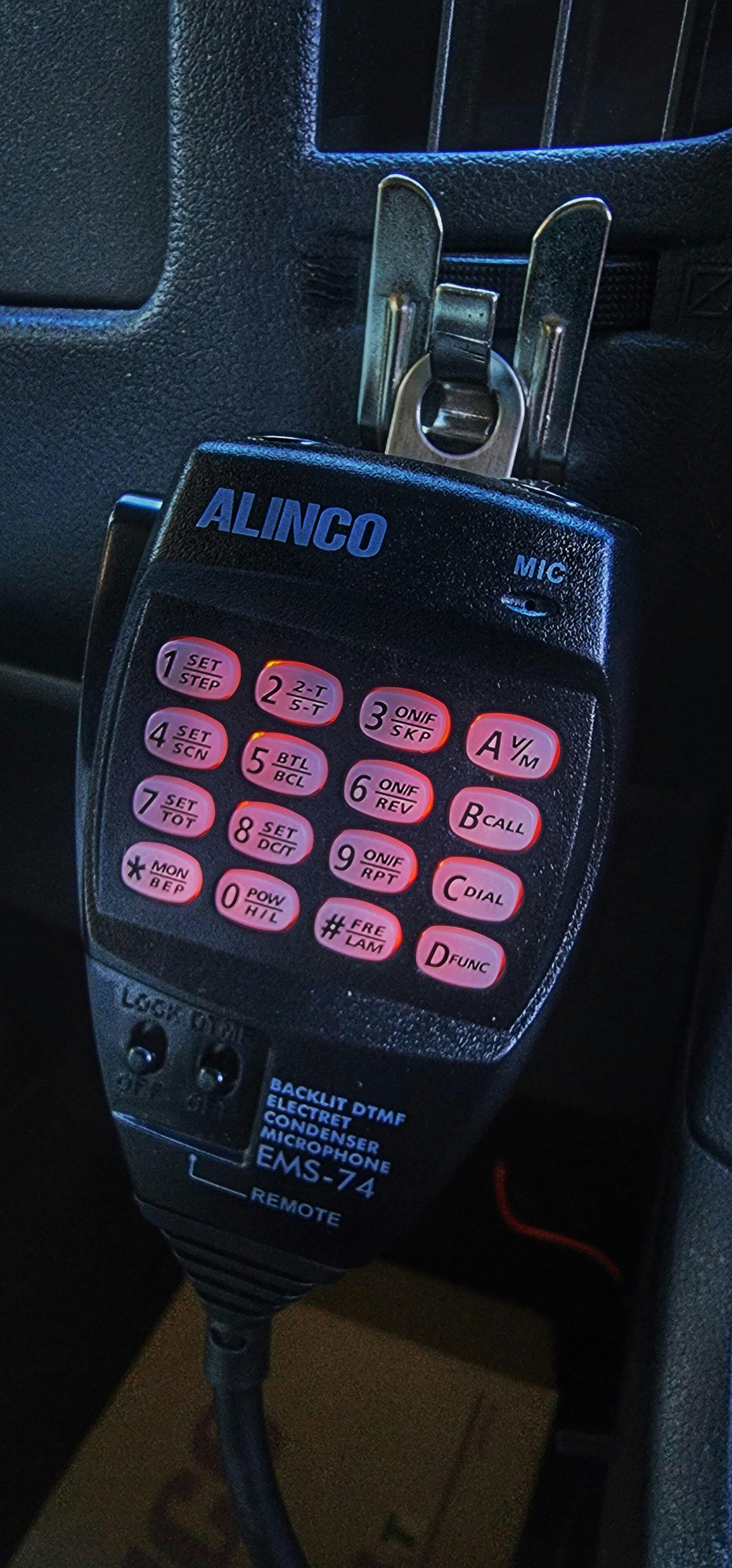

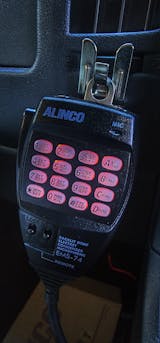

EMS-74 Microphone
-
ADUA38 DC Power Cable
-
ADFM78 Mounting Bracket & Hardware
-
Instruction Manual
Proudly supplied by The Ham Shack - NZ – supplying New Zealand Amateur Radio Operators with high-quality Alinco radios and accessories nationwide.
Customer Reviews

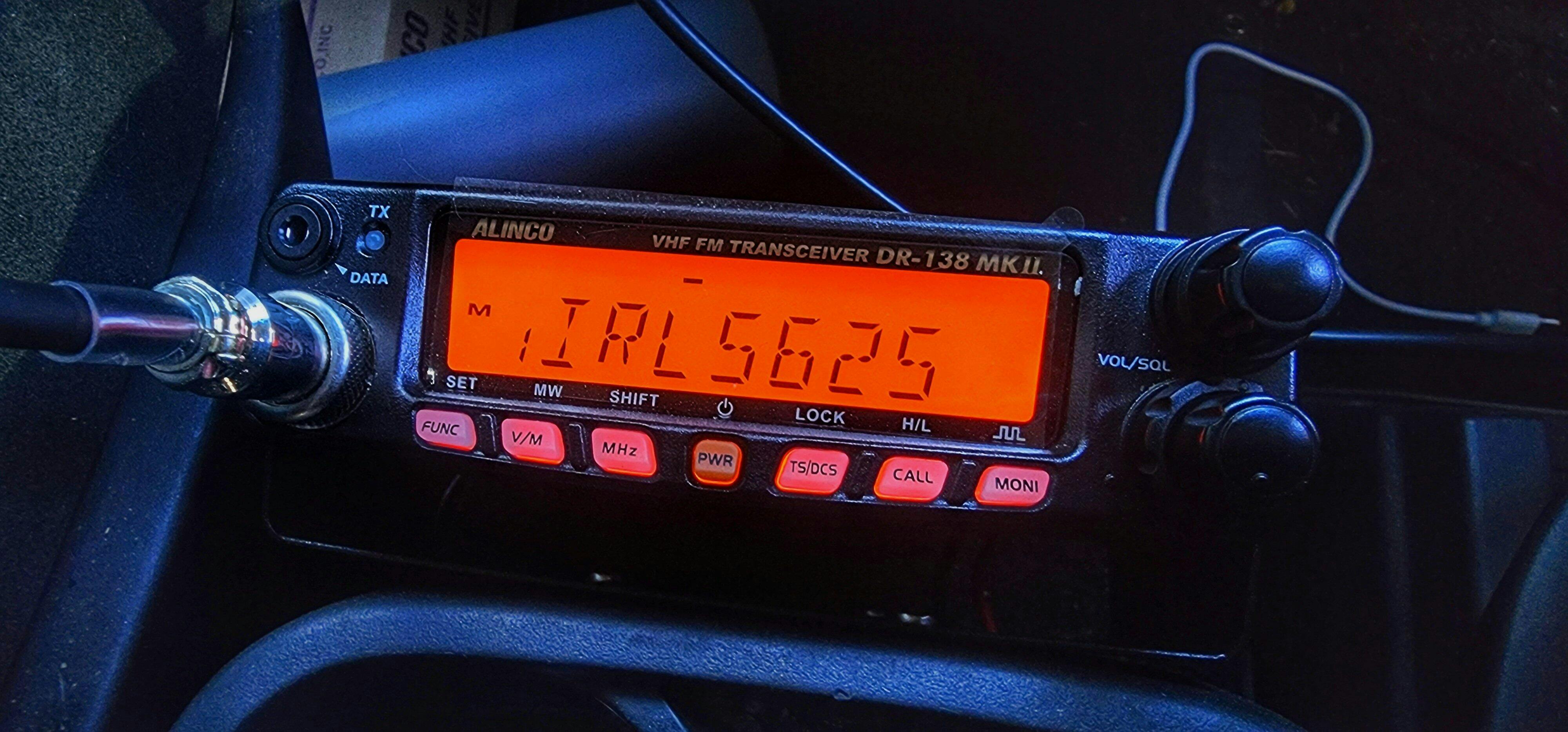

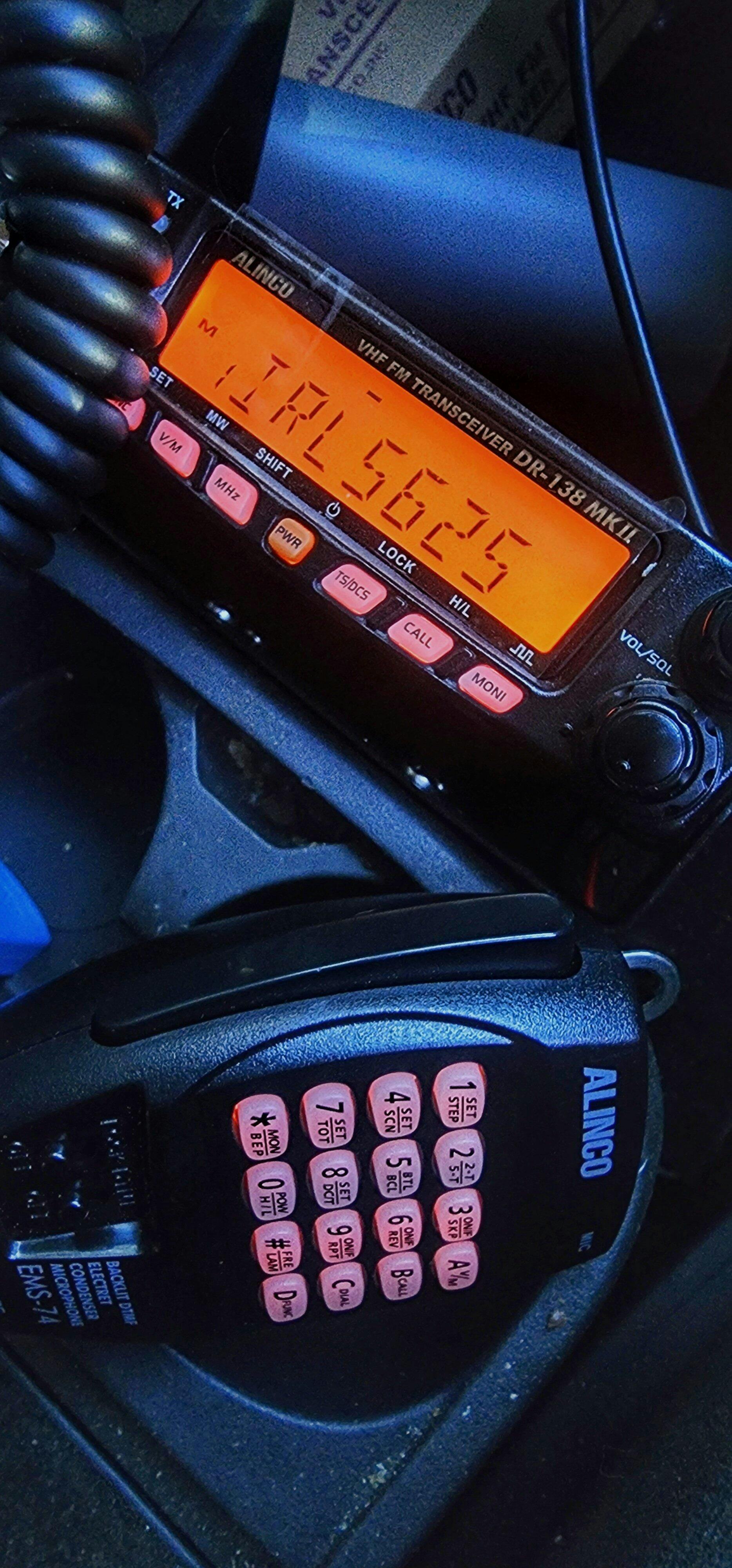

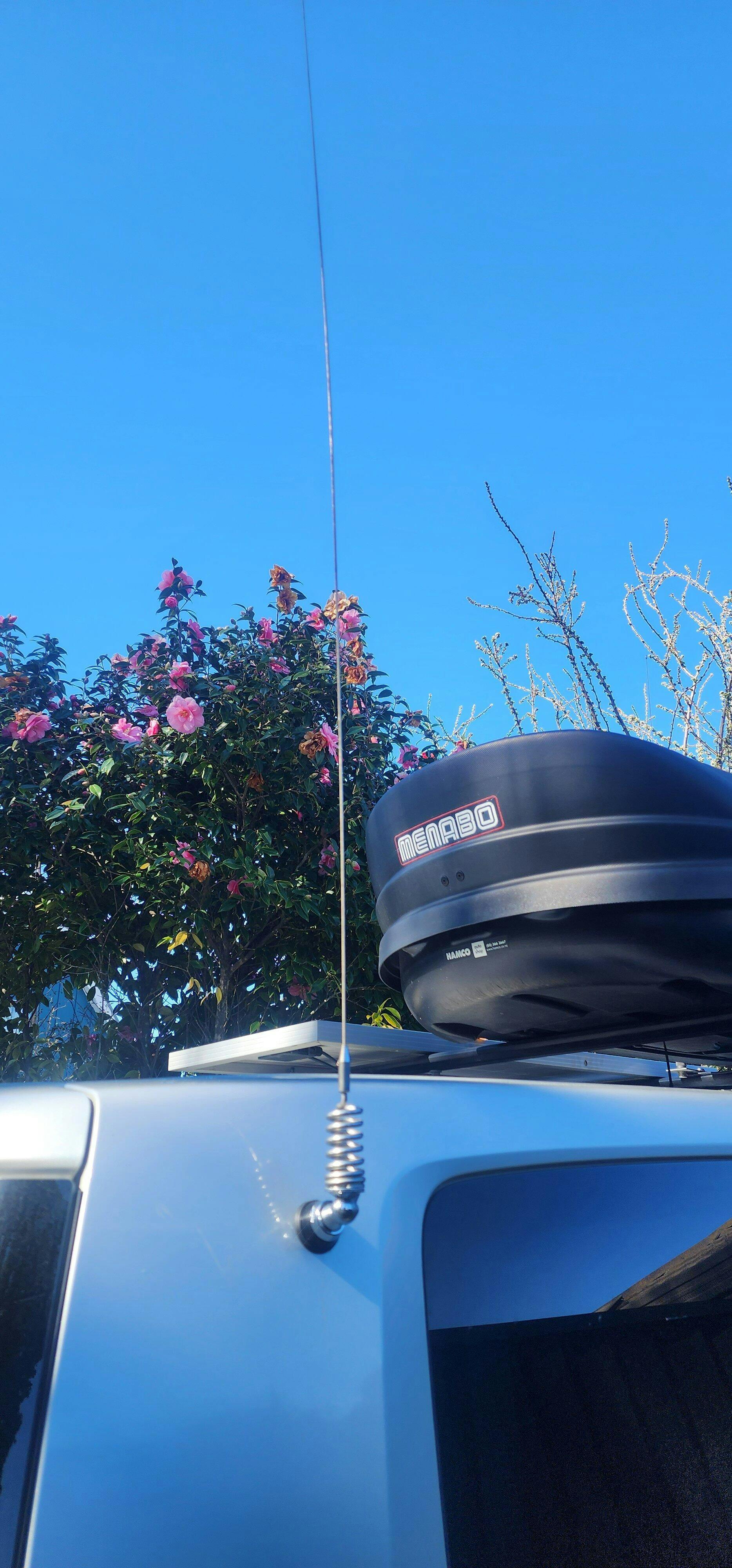

I picked up the new Alinco Radio from the Ham Shack after having issues with my existing setup. Greg helped me out with his installer option as well and had the radio up and running and installed in no time. The quality of the radio is incredible with a great commercial / industrial feel to it. It feels like quality and I managed to get a good 40km on simplex back to the Ham Shack when driving home, and that was via hills and motorways.
Greg did the SWR checks on the radio and made sure it was putting out a good signal and showed me the results. The SWR was around 1:1 and the feedback on the audio reports has been great. I purchased the USB cable for programming but so far the hand programming has worked well, they menu is intuitive and easy to use. Im super excited about the new radio and if anyone is thinking about getting one the service was 10/10 or 5 stars.
