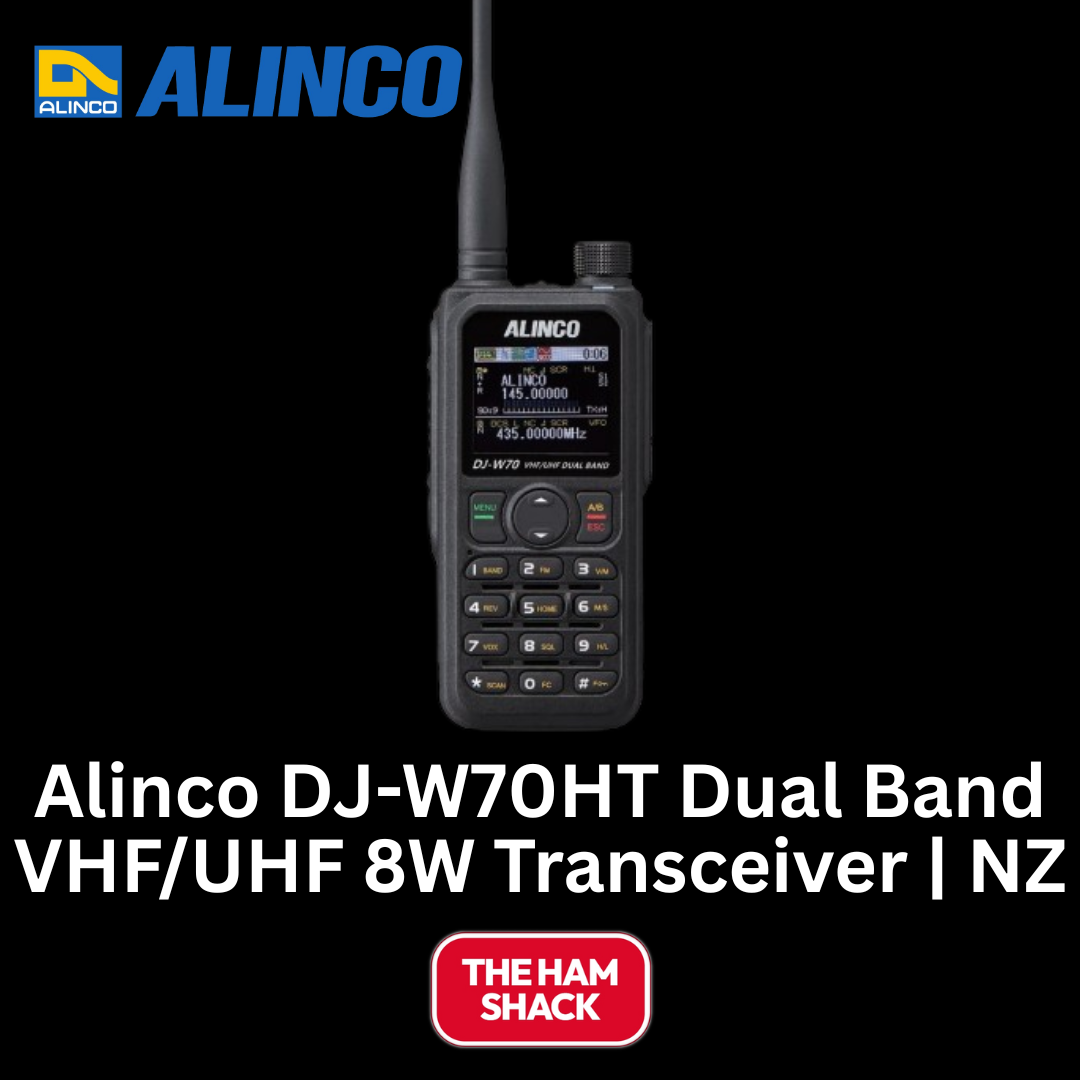

Alinco DJ-W70HT Dual Band VHF/UHF 8W Handheld Amateur Radio Transceiver
Alinco DJ-W70HT Specifications:
- DJ-W70 has V/U wideband, Airband & FM Broadcast receive
-
RF output levels; ~8W/5W/1W selectable levels in the 2m
band (144~148MHz) and also ~8W/5W/1W selectable levels in
the 70cm band (430~440MHz). High 8W approximate RF output
level depends upon operating frequency and battery condition! - CTCSS/DCS Encode/Decode, DTMF & Tone Bursts
- Wideband receive; 136~174MHz & 400~480MHz
- FM Broadcast band receive; 76~108MHz
- Airband VHF AM receive; 108~136MHz

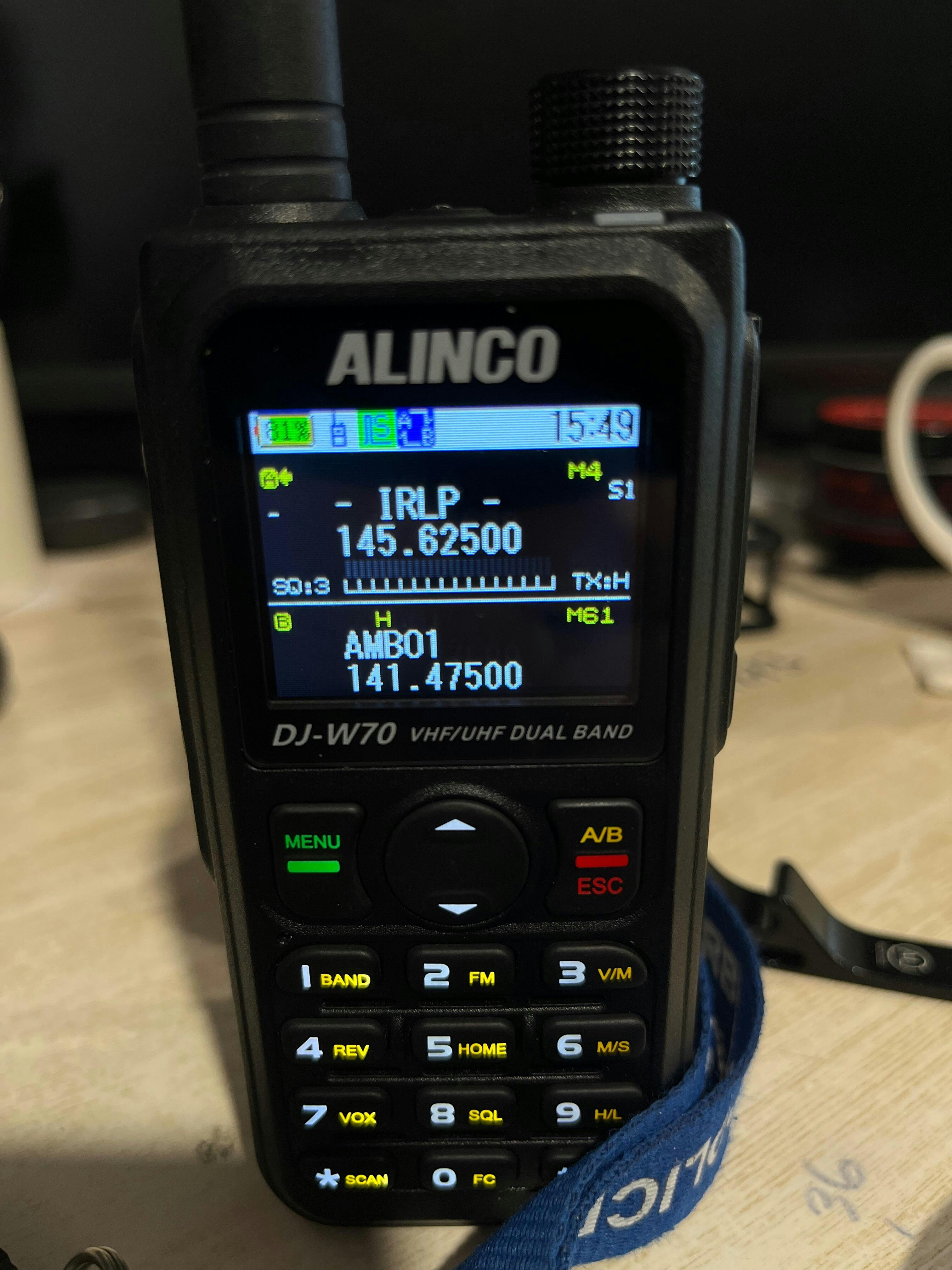

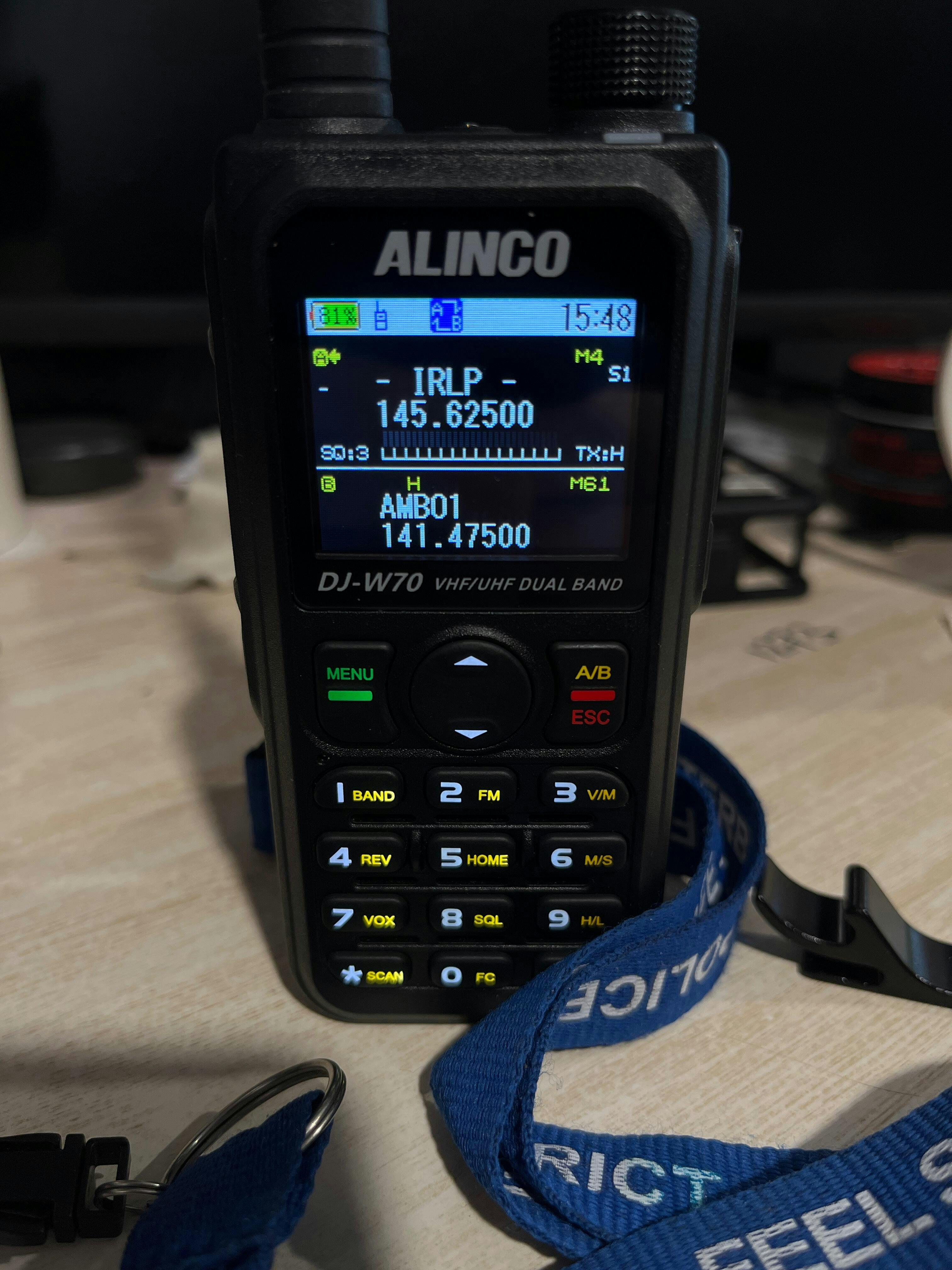

- Full-colour TFT display
- 8-digit alphanumeric channel labels
- 200 PC-programmable channels
- Selectable battery-save modes
- Frequency counter function
- PLL steps 2.5kHz/6.25kHz
- Keypad frequency entry
- Various scanning modes
- Various scanning modes
- Reverse repeater, TOT
- Wide/Narrow operation
- IP67 dust/waterproof
- Busy channel lockout
- Two scanning lists
- Internal VOX
USB Type-C for battery charging & PC connection - Receive sensitivity; 0.25uV (25kHz), 0.35uV (12.5kHz)
- Commercial radio cross-modulation, inter-modulation
and strong signal handling receive performance! - Lithium-ion battery with USB charging
- Selectable battery save parameters
- Audio output; 1W at 10% distortion
- Wide/Narrow operation selectable
- DC current drawn on TX; Low 0.8A, Mid 1.7A & High 2.6A
- Dimensions; 61w x 129h x 42d mm (with battery pack)
- Weight; 310g (with battery pack and antenna)
- Included accessories; EA-326 antenna, EBC-71 belt clip & wrist
strap, DC-314 drop-in fast charger (for EBP-124 Li-ion battery),
approved AC/DC USB-A charger, EDC-354 charging stand, EBP-124
7.4V @ 2600mA/h Li-ion battery and EDS-50 USB cable - IP67 Weatherproofing
Read more about the Radio here.
