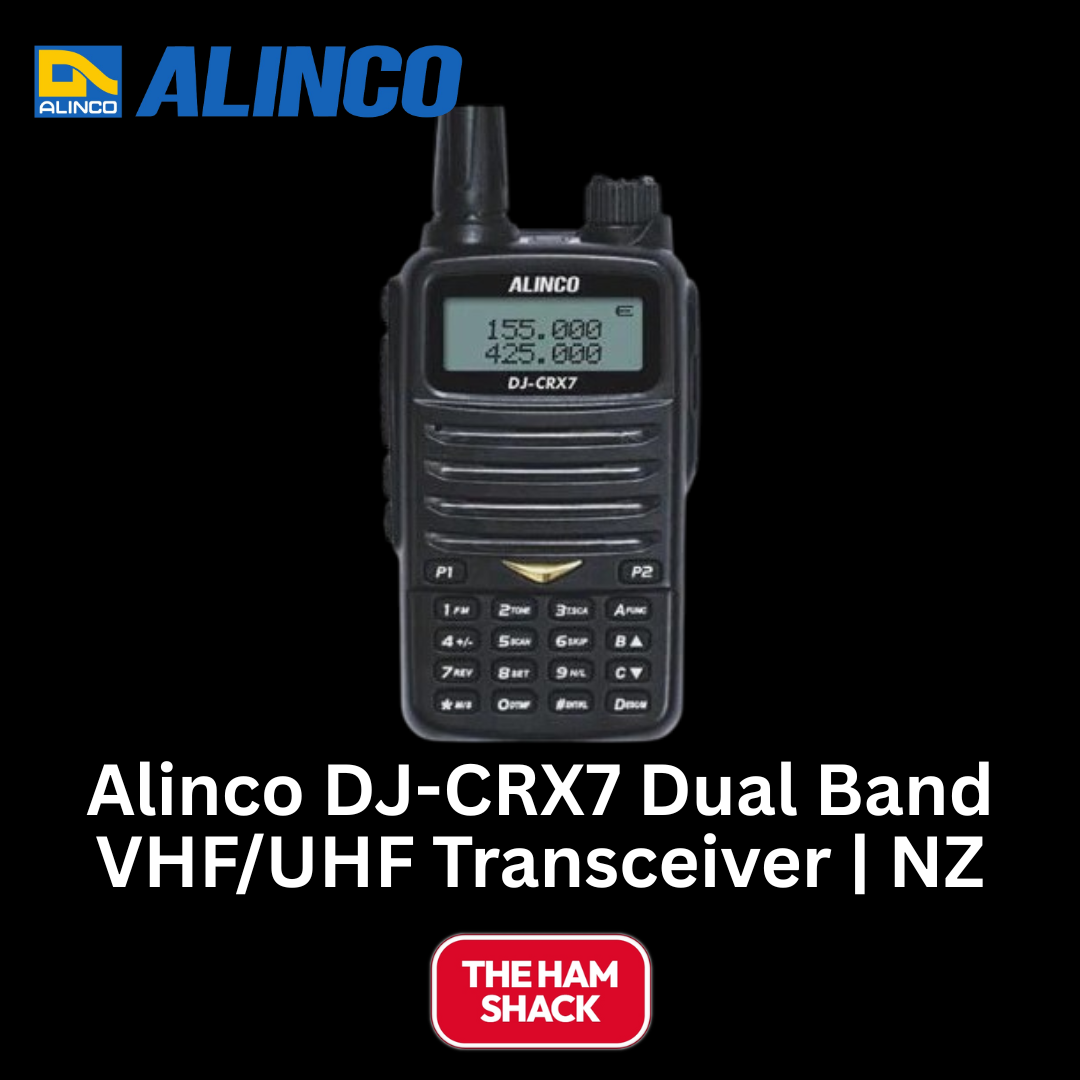

Alinco DJ-CRX7 HE Dual-Band VHF/UHF Handheld Radio - Compact Power, Professional Performance
The Alinco DJ-CRX7 HE is a compact and lightweight dual-band VHF/UHF handheld transceiver built for amateur radio operators who demand professional features in a rugged and portable design. Don’t be fooled by its simple appearance—this radio is packed with high-end capabilities that rival far more expensive models.
Whether you're a seasoned ham operator or a new enthusiast, the DJ-CRX7 HE offers outstanding versatility, crystal-clear audio, and reliable performance you can count on. Here at the Ham Shack we are using Alinco Radios still that are over 15 Years Old and they are still going stong. Their quality and ease of use are what drew up to provide these to the New Zealand Market. We hope you enoy them as much as we do. Find out more about this Radio and Download the PDF Product file here.
Alinco DJ-CRX7 HE Key Features
Powerful Audio Output: Built-in 1W speaker delivers loud, clear sound even in noisy environments.
Dual-Band Operation: 5W (VHF) / 4W (UHF) power output for strong, stable transmissions.
Semi-Duplex Receive: V/V, U/U, V/U with FM broadcast band reception.
200 Programmable Memory Channels: With alphanumeric labels and parameter storage.
Professional Signaling Support: CTCSS, DCS, DTMF, and tone-burst tones for repeater access and selective calling.
Direct Frequency Input: Quickly enter frequencies via keypad for fast tuning.
Internal VOX: Hands-free operation with adjustable sensitivity.
Device-to-Device Cloning: Clone settings between radios using a standard 3.5mm audio cable.
Safety & Power Management: Busy Channel Lockout (BCLO), Timeout Timer (TOT), Auto Power Off.
Alinco DJ-CRX7 Power That Lasts

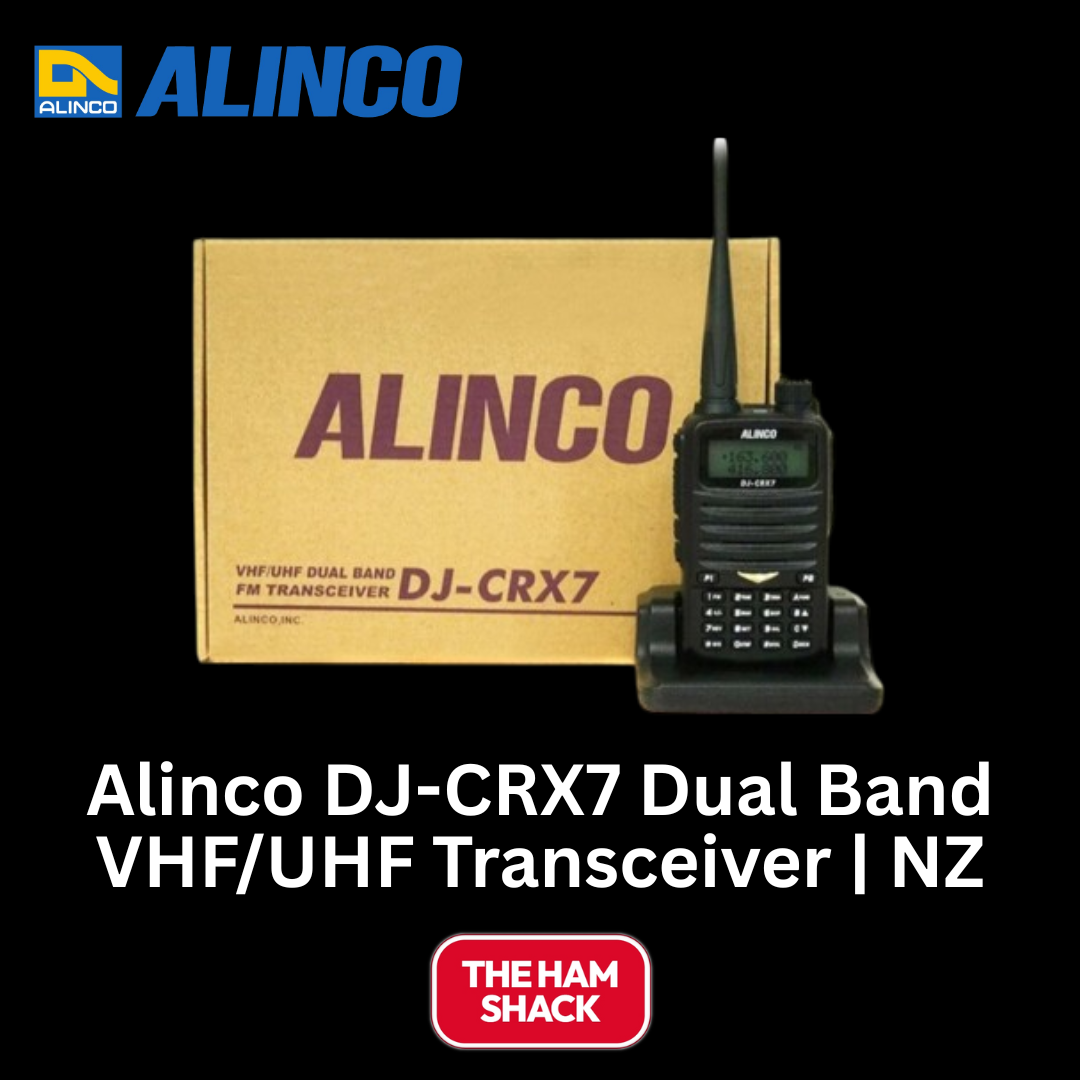

The Alinco DJ-CRX7 comes with a high-capacity 1800mAh Li-Ion battery, offering up to 15 hours of operating time. Includes a desktop stand charger and belt clip for convenience and portability.
Alinco DJ-CRX7 Built to Withstand
Operating Temperature: -20°C to +55°C (-4°F to 131°F)
Durable Construction: Ideal for outdoor and field use
Alinco DJ-CRX7 Enhanced Listening Experience
Wide/Narrow FM TX/RX with professional-grade voice compandor
Receive VHF AM aircraft band and FM broadcast
High adjacent channel selectivity and low spurious emissions
Alinco DJ-CRX7 Technical Specifications
| Specification | Detail |
|---|---|
| Frequency Coverage (RX) | 136–174 MHz / 400–438 MHz (76–108 MHz FM) |
| Frequency Coverage (TX) | 144–146 MHz / 430–440 MHz |
| Power Output | 5W (VHF) / 4W (UHF) / 2W / 1W |
| Audio Output | 1W (10% distortion) |
| Modulation | F3E (Wide/Narrow) |
| Channel Steps | 2.5 – 50 kHz |
| Battery Voltage | 7.4V |
| Dimensions (with battery) | 92 x 57 x 35 mm |
| Weight (with antenna/battery) | Approx. 213g |
Why Choose the DJ-CRX7 HE?
Whether you're on a mountain trail, managing emergency comms, or enjoying a quiet evening scanning frequencies, the DJ-CRX7 HE delivers dependable performance, crystal-clear audio, and advanced functions in a compact, user-friendly package—all at Alinco’s affordable price. You wont regret purchasing one of these radios, they are an excellent entry point to Portable Amateur Radio comms as well as a great unit for those who are already experienced and vetran hams.
Ready to elevate your ham radio experience? Add the Alinco DJ-CRX7 HE to your gear today at the Ham Shack, your local provide of Amatauer Radio Equipment, Radios and Antennas.
