Pre-Assembled Dipole Upgrade for Heavy Duty Spiderbeam 3- or 5-Band Yagi (Balun Not Included)

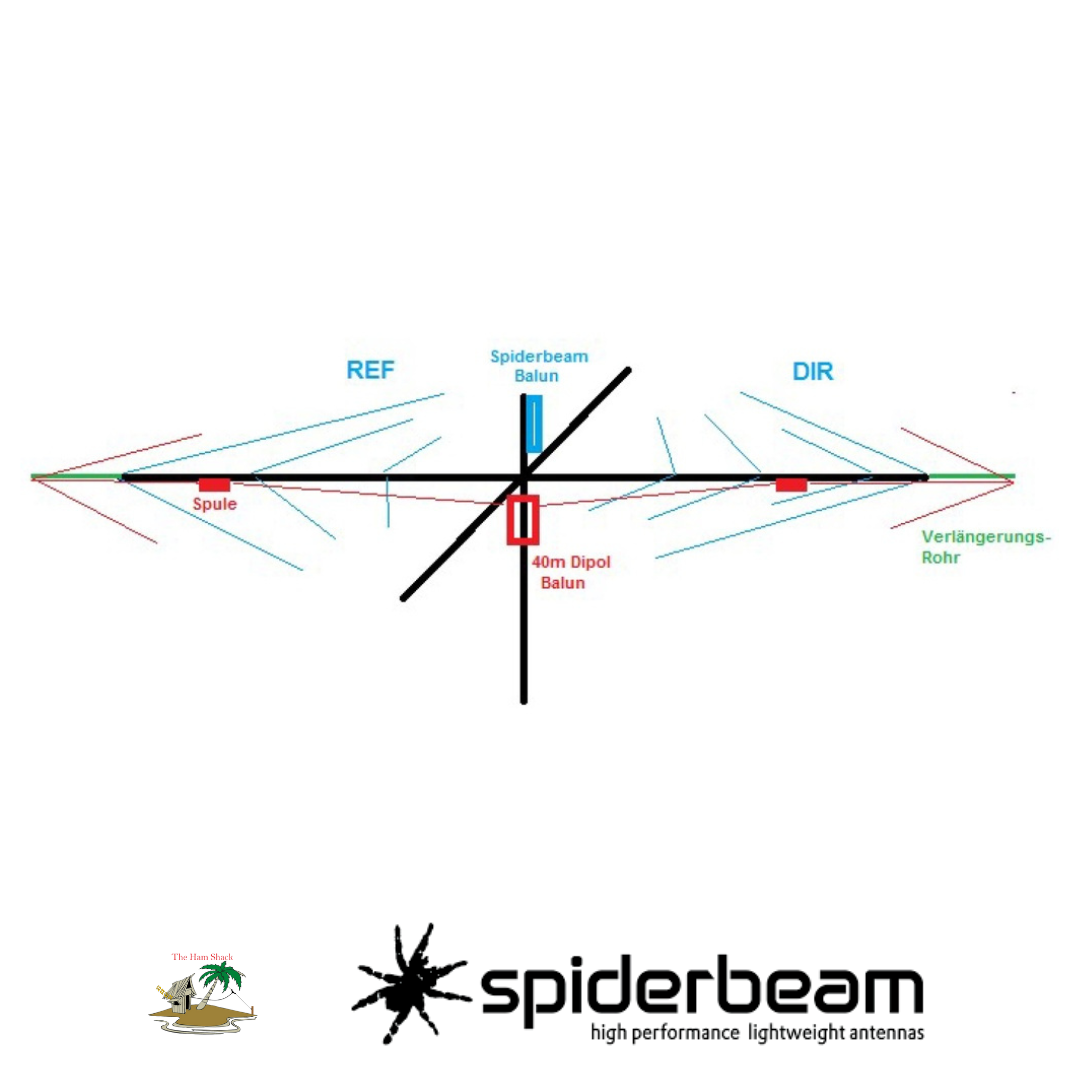

Enhance your Heavy Duty Spiderbeam Yagi with this pre-assembled dipole upgrade, designed for easy installation and improved band coverage. Perfect for existing 3- or 5-band Spiderbeam Yagis (excluding the special WARC versions), this dipole mounts offset by 90° to your current wire elements for optimal performance.
Features & Benefits:
-
Extends boom length with two 30mm diameter fiberglass segments, increasing turning radius from 5m to 6m
-
Dipole ends capacitively loaded via thin wires connected to lateral spreaders for stable tuning
-
Built with premium materials including Wireman CQ-532 copperweld wire, UV-resistant polyethylene insulators, and heat-shrink tubing
-
Includes plastic spool for convenient winding during transport
-
Compatible with existing Spiderbeam balun and feedline or separate feedline/balun for flexible configurations
What’s Included:
-
2 fiberglass extension segments (Heavy Duty Yagi version)
-
Plastic cable spool (20 cm diameter)
-
2 stainless steel hose clamps
-
Pre-assembled dipole with copperweld wire, enamel copper wire, coil forms, insulators, solder lugs, and monofil line
Important Notes:
-
Balun is NOT included and must be ordered separately if a 2-balun setup is desired
-
Not compatible with WARC Spiderbeam Yagis
-
Single balun usage maintains forward gain and front-back ratio but reduces front-to-side ratio on 15m
Upgrade your Spiderbeam Heavy Duty Yagi today with this precision-built dipole kit — ready to install and designed to maximize your antenna’s multi-band performance!
